Brady IRX200 Rugged Profinet RFID Fixed Reader EU
Part Number: B-IRX200-EU
Description
- OT & IT native: Profinet IO and OPC UA Auto-ID server support
- Built to last: shock and vibration tested, with IP67 ingress protection
- Automated data & decisions: built-in edge computer with dual-core A53 to run reader apps, and quad-core R5F co-CPU’s for real-time features
- Read up to 1000 tags per second: cutting edge UHF RFID sensitivity and read rate
- Easy to install and maintain: integrated high gain UHF RFID antenna without extra cables and components high gain RFID antenna, and one connector for an external additional antenna
- Fully compatible with Impinj Gen2X RAIN solutions toolbox.
Key Features
- Ingress Protection Rating: IP67
- Connectivity Options: Ethernet, I/O connection, USB
- Display Type: None
- External Antenna Port: 1 RP-TNC female with conducted power of 30 dBm
- Integrated Antenna: Yes
Specifications
Key Characteristics
| Article Number | 321713 |
|---|---|
| Order Reference | B-IRX200-EU |
| Total Qty per Pack | 1 Piece(s) / Box |
| Minimum Order Quanitity | 1 |
| RF Radiated Power | Max. ERP 2 W (33dBm) / EIRP 3.3 W (35.2dBm) |
| Application(s) The type of application or end use environment the product is designed for. | Asset tracking, Inventory and inspection labelling, RFID labelling |
| Quantity | 1 |
| Brand | Brady® |
| Country of Origin Identifies where a product is manufactured or produced. It can determine tariffs and trade rules. | Finland |
Dimensions
| Reading Speed | Up to 1000 tags per second |
|---|---|
| Size - Width (mm) | 200.00 mm |
| Size - Height (mm) | 200.00 mm |
| Size - Depth (mm) | 48.00 mm |
| Weight (kg) | 1.1 kg |
| Dimensions | 200.00 mm (W) x 200.00 mm (H) x 48.00 mm (D) |
Material Characteristics
| Colour | Blue, Grey |
|---|
Product Features
| Central Processing Unit (CPU) | Dual-core A53 with quad-core R5F co-CPUs |
|---|---|
| Maximum Receive Sensitivity | -87dBm |
| Antenna Features | Circularly polarised. Max gain +7.5 dBic |
| Connectivity Options The way in which the printer or scanner can be connected to an external device, PC or Application. | Ethernet, I/O connection, USB |
| Display Type | None |
| Interface Type | None |
| Internal Memory Capacity | 2 GB RAM, 8 GB Flash |
| RFID capabilities | UHF |
| Mounting Type | 4 Screws (not included), Vesa 100 wall bracket compatible |
| Operating Humidity Range | 10%-95% (non-condensing) |
| Operating System | Linux, Nordic ID technology IoT platform by Brady |
| Operating Temperature | -20°C - 55°C |
| Power Source | 24 VDC, 1.25A M12-L (FE connected) |
| Power Supply Voltage | 24VDC, 1.25A M12-L (FE connected) |
| Shipped With Battery | No |
| Storage Temperature | -40°C - 85°C |
| ISO Conformance Standards | ISO 18000-63 (EPC Class 1Gen2v2 - RAIN) |
| Integrated Antenna | Yes |
| Connector | RP-TNC |
| External Antenna Port | 1 RP-TNC female with conducted power of 30 dBm |
| ESD | Air discharge: +/-8kVdc, Contacts: +/-4kVdc |
| Industrial Protocols | OPC UA Auto-ID server, Profinet IO device CC-B with 1ms cycle time |
Printing Specifications
| Device Indicators | RFID read and communication LED |
|---|---|
| Power Requirements | Max 12W while transmit. 4W idle |
What's Included
| Includes | This Brady IRX200 RFID Reader ships in a carboard box with a safety and regulations card. |
|---|---|
| Warranty | 2 years |
Compliance
| UNSPSC Standardises product/service classification globally. | 43211701 |
|---|---|
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 04 February 2026 |
| Approval/Compliance | CE, EN 60068-2-27, EN 60068-2-6 |
| Safe Use Instructions | SUI_RFID_Devices.pdf |
| Printer can be shipped to | Albania, Andorra, Armenia, Austria, Belarus, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Finland, Germany, Greece, Hungary, Iceland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Metropolitan France, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine (Excluding Crimea Region), United Kingdom |
| Ingress Protection Rating Rating of protection provided against intrusion, dust, accidental contact, and water by mechanical casings and electrical enclosures. | IP67 |
Drivers, Firmware & Software
Guides and Videos
Product Overviews & Specs
Manuals, Guides & How-To
Customers also bought
-
IRX200 cable M12-X to RJ45
M12-X-RJ45-5M
£103.50 -
IRX200 IO cable 150 cm
M12-A-IO
£40.50 -
IRX200 Power cord UK
IRX200-PSU-CORD-UK
£112.50 -
IRX200 USB/IO cable 150 cm
M12-A-USB-IO
£88.19 -
IRX200 Power cable 150cm M12-L connector
M12-L-POWER
£31.50 -
RP-TNC Antenna cable
RP-TNC-ANT-1M
£25.20 -
Brady FR22 Fixed RFID Reader LTE EU with GA30 antenna
B-FR22LTE-GA30-EU
£2,187.72 -
Brady FR22 Fixed RFID Reader EU with GA30 Antenna
B-FR22-RDR-GA30-EU
£2,009.23 -
FR22 Fixed RFID Reader
B-FR22-RFID-RDR-EU
£1,736.11 -
FR22 Fixed RFID Reader LTE
B-FR22-RDR-LTE-EU
£1,916.10
One device. Instant process visibility.
Maximise real-time visibility on industrial processes with cutting edge RFID performance. The IRX200 combines powerful RFID reading with integrated edge computing and native OT & IT connectivity to support greater warehouse and production efficiency.
Real-time visibility
Instantly see the status and evolution for both work-in-progress in production, and stock levels in the warehouse, using the same hard- and software. Reduce production interruptions. Track inventories automatically with an RFID reader that can pick up 1000 items per second. Streamline processes and enhance output using accurate, real-time, automated and programmable data that enable fast, accurate decision making and effective continuous improvement.
Unique, all-in-one tracking
Read battery-free RFID tags right out of the box with the IRX200’s all-inclusive functionality.
An integrated, high gain RFID antenna makes the IRX200 easy to install and maintain. The RFID reader does not require external antennas. Native OT & IT connectivity, including Profinet IO and OPC UA, enable smooth, reliable data throughput. Before sharing, data can be processed by a built-in edge computer that nullifies latency and reduces facility cloud bandwidth consumption. Equipped with powerful computing capabilities, the IRX200 can run RFID reader and AI apps to process data in real-time, and share them with stakeholders and other machines in the most optimal way.
Enhanced visibility. Industrialised reliability.

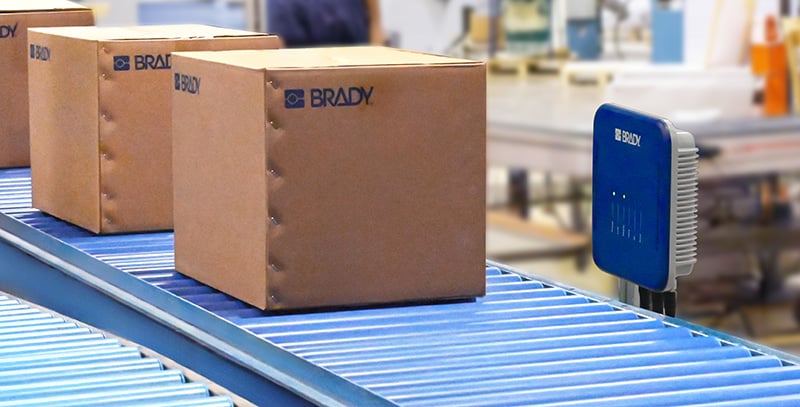

The IRX200 is designed for industrial environments. With EN 60068-2-27 shock, EN 60068-2-6 vibration, and IP67 ingress protection tested mechanics, the reader can be mounted on almost any racking, conveyor, forklift and indoor vehicle. An operating temperature range of -20°C to 55°C makes the IRX200 useful in many industrial environments and applications.
With the IRX200, a large number of industries can power productivity using insights and decisions supported by real-time, actionable data from their own industrial processes.
Brady RFID Demo App
Combine your RFID reader with the RFID Demo App to explore various straightforward RFID functionalities such as performing inventory management and writing, authenticating and locating RFID labels/tags.
Download
