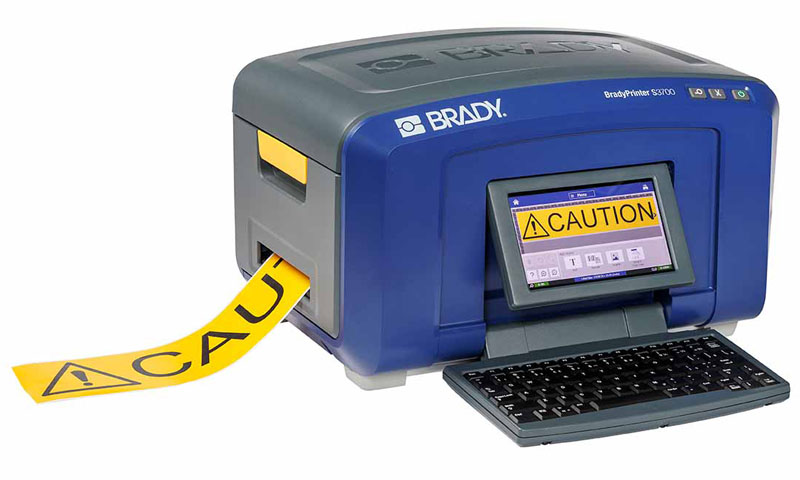

S3700 Multicolour & Cut Sign and Label Printer with QWERTY UK keyboard
Part Number: S3700-QWERTY-UK
Click or press enter to play
£3,069.61
(GBP)
1 Piece(s) / Box
Including VAT: £3,683.53
Part Number: S3700-QWERTY-UK
Description
Colour your way to an improved workplace with the S3700 Sign and Label Printer. With multicolour print and shape cutting capabilities, this printer creates impactful identification that fits your application and workspace needs.
- Multicolour print capabilities make it ideal for creating impactful safety signs, lockout tags, warning labels and more in a single pass
- Built in XY-cutter allows for the creation of die-cut shapes and text that gives the flexibility to choose where to place new messaging
- The built-in keyboard and touchscreen interface make label creation a breeze
- Label creation is even faster with the quick setup and print speeds that come with print smart technology from Brady
- Prints on a variety of material options so you can create signs and labels for a variety of applications
- Ships with free Brady Workstation Basic Label Design software suite, which will enable you to immediately design professional labels.
Key Features
- Continuous vs Die Cut Labels: Continuous, Die-cut
- Application(s): Asset tracking, Cold temperature labelling, Component and equipment labelling, Electrical labelling, Facility identification, General identification, Hazard communication identification, Lean and 5S labelling, Pipe and valve marking, Safety identification, Security identification, Temperature indicating labelling
- Colour Capability: Multicolour; Monocolour
- Max. Label Width (mm): 107.95 mm
- Print Technology: Thermal Transfer
- Recommended Usage per Day: 600
- Resolution (dpi): 300 dpi
- Stand Alone Printing: Mobile device connected, Stand-alone & Peripheral
Specifications
Key Characteristics
| Article Number | 176434 |
|---|---|
| Order Reference | S3700-QWERTY-UK |
| Total Qty per Pack | 1 Piece(s) / Box |
| Minimum Order Quanitity | 1 |
| Application(s) The type of application or end use environment the product is designed for. | Asset tracking, Cold temperature labelling, Component and equipment labelling, Electrical labelling, Facility identification, General identification, Hazard communication identification, Lean and 5S labelling, Pipe and valve marking, Safety identification, Security identification, Temperature indicating labelling |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | BradyPrinter S3700 |
| Ribbon Series | R10000 |
| Country of Origin Identifies where a product is manufactured or produced. It can determine tariffs and trade rules. | Malaysia |
Dimensions
| Size - Width (mm) | 482.60 mm |
|---|---|
| Size - Height (mm) | 279.40 mm |
| Size - Depth (mm) | 361.95 mm |
| Weight (kg) | 16.74 kg |
| Display Size | 155.19 x 86.87 mm |
| Minimum Label Height (mm) | 12.00 mm |
| Min. Label Width (mm) | 12.70 mm |
| Dimensions | 482.60 mm (W) x 279.40 mm (H) x 361.95 mm (D) |
Material Characteristics
| Materials Supported | Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallised Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallised Polyester, Transfer Tape, Vinyl, Vinyl Cloth |
|---|---|
| Colour | Blue, Grey |
Product Features
| Auto Shut Off | Yes |
|---|---|
| Battery Weight (metric) | 3.000 |
| Media Sensor | Notch |
| Built-in Symbols | 664 |
| Language Support | Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional & Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
| Calibration Printer requires manual calibration for optimal performance. | No |
| Connectivity Options The way in which the printer or scanner can be connected to an external device, PC or Application. | Ethernet, Standalone Use, USB |
| Cutter Type | XY Cutter and Auto Cutter |
| Display Type | Colour LCD Touchscreen |
| Hardware Options | Cleaning swabs, Media wipers, Rolling case, Squeegee, Transfer tape, USB cable |
| Interface Type | Keyboard, Mobile device, PC, Touchscreen |
| Internal Memory Capacity | 512 MB |
| Barcode Symbologies | Code 128, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, More through Brady Workstation, PDF417, QR code |
| Keyboard Type | QWERTY |
| Operating Humidity Range | 15%-80% (RH non-condensing) |
| Operating Temperature | 15°C - 40°C |
| Stand Alone Printing Stand-alone Mode of Operation means that the printer does not need to be connected to a computer or mobile app for operation. Peripheral means that a computer or mobile app is required to run the printer. Some printer models can operate in both modes. | Mobile device connected, Stand-alone & Peripheral |
| Power Source | AC Adaptor |
| Power Supply Voltage | 110 - 240 V |
| Print Preview Feature | Yes |
| Printing Wizards | Arc Flash, Circle Gauge, Custom Labels, General Template, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-know, Tags, WHMIS |
| Storage humidity | 15%-90% (RH non-condensing) |
| Storage Temperature | -20°C - 50°C |
| Units | Inches, Millimetres, Points |
| Cut Options Available | Cut at the end of print jobs, Cut between labels |
Printing Specifications
| Print Technology | Thermal Transfer |
|---|---|
| Print Speed (mm/sec) | 127.00 mm/s |
| Colour Capability | Multicolour; Monocolour |
| Resolution (dpi) | 300 dpi |
| Display Resolution | 1024 x 800 pixels |
| Max. Label Width (mm) For custom materials, consult technical documentation for printing specifications | 107.95 mm |
| Max. Liner Width (mm) | 107.95 mm |
| Recommended Usage per Day Estimated throughput based on a typical work week (8 hrs/day, 5 days/week). Actual results may vary due to label size, material, print speed, and content. | 600 |
| Max. Print Width (mm) | 101.60 mm |
| Max. Print Length (mm) | 2.53 m |
| Text Sizes (pt) | 4 - 600 pt |
| Font Styles | Arial, Arial 65, Courier New, MS Gothic, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana |
| Symbol Categories | Arrows, Exit, Fire Safety, First Aid and Rescue, GHS/CLP, HSID, ISO Signs, Mandatory, Miscellaneous, Packaging, Personal Protective Equipment, Prohibition, Public Information, Safety, Safety Sign Headers, Shapes, Warning, WHIMIS |
| Hours of Operation | 8 hours/5 days |
| Number of Stock Parts | 400+ standard parts |
| On Screen Indicators | Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi |
| Min. Label Width (mm) | 12.70 mm |
| Programming Language | Brady Custom ZPL Emulation Software Solution, Brady Script Emulator for ZPL (Accessory required) |
| Smart Cell | Yes |
Compatibility
| Continuous vs Die Cut Labels | Continuous, Die-cut |
|---|---|
| Software Compatibility | Brady Workstation, Express Labels Mobile App, Software development kit, Windows based driver for 3rd party software use |
| B- Numbers supported | B-109, B-145, B-321, B-342, B-345, B-362, B-390, B-403, B-412, B-422, B-423, B-424, B-425, B-427, B-428, B-432, B-434, B-435, B-437, B-438, B-439, B-459, B-461, B-473, B-480, B-483, B-484, B-486, B-488, B-489, B-490, B-498, B-499, B-509, B-526, B-549, B-551, B-565, B-569, B-581, B-584, B-593, B-595, B-634, B-642, B-717, B-718, B-719, B-724, B-727, B-7351, B-7425, B-7546, B-7551, B-7563, B-7569, B-7576, B-7593, B-7597, B-7598, B-7599, B-7643, B-7696, B-7697, B-787, B-854, B-855, B-966, B-966B |
| Compatible Media The corresponding media series: Parts with this prefix are compatible with the printer. | B30-, B30C-, B30EP- |
| Min. Label Length (mm) Test for your application. Small label performance varies based on print speed, quantity per print run, heat setting, and size and layout of the printed content. | 12.70 mm |
What's Included
| Includes | S3700 Safety and Facility Printer, Brady Workstation Basic Suite, Quick Start Guide, Power Cord, USB Cord, Mouse, Cleaning Kit (PCK-6), USB Flash Drive |
|---|---|
| Warranty | 1 year |
Compliance
| UNSPSC Standardises product/service classification globally. | 45101519 |
|---|---|
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 25 June 2025 |
| Approval/Compliance | Argentina: UL-AR & S Mark, Australia: RCM mark, China: CCC-RoHS, Europe: CE-RoHS, India: BIS, Korea: KC, Mexico: UL NOM CoFC, Russia: EAC, South Africa: LOA and SABS (No logo on product label), Taiwan: BSMI Exemption, USA & Canada: cULc |
| Safe Use Instructions | SUI_Systems.pdf |
| Printer can be shipped to | Albania, Algeria, Andorra, Angola, Australia, Austria, Bahrain, Belgium, Benin, Bosnia and Herzegovina, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Croatia, Cyprus, Czech Republic, Democratic Republic of Congo, Denmark, Djibouti, Egypt, Eritrea, Estonia, Ethiopia, Finland, Gabon, Gambia, Georgia, Germany, Gibraltar, Greece, Guinea-Bissau, Hungary, Iceland, Iran, Iraq, Ireland, Israel, Italy, Jordan, Kenya, Kosovo, Kuwait, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Madagascar, Malawi, Mali, Malta, Mauritania, Mauritius, Mayotte, Metropolitan France, Moldova, Monaco, Mozambique, Namibia, Netherlands, Niger, Norway, Oman, Pakistan, Palestinian Territories, Poland, Portugal, Qatar, Réunion, Romania, Russia, Rwanda, San Marino, São Tomé and Príncipe, Saudi Arabia, Serbia, Seychelles, Sierra Leone, Slovenia, Spain, Sweden, Switzerland, Turkey, United Arab Emirates, United Kingdom, Vatican City, Yemen, Zimbabwe |
Drivers, Firmware & Software
Drivers & Firmware
Guides and Videos
Product Overviews & Specs
- BradyPrinter S3700 Multicolor & Cut - Infosheet (EUR-M-344-EN) [PDF]
- Do-it-yourself printing for safety & facility identification - Brochure (EUR-M-801-EN) [PDF]
- Brady Express Labels Mobile App - Information sheet [PDF]
-
BradyPrinter S3700 Multicolor + Cut Sign and Label Printer - Overview Video
Manuals, Guides & How-To
Customers also bought
-
S3700 Multicolour & Cut Sign and Label Printer with QWERTY UK keyboard, Wifi and Bluetooth enabled
S3700-WB-QWERTY-UK
£3,069.61 -
S3700 Multicolour & Cut Sign and Label Printer - QWERTY UK keyboard + BWS Suite
S3700-QY-UK-BWS
£3,249.61 -
S3700 Multicolour & Cut Sign and Label Printer with QWERTY UK keyboard, Wi-Fi and Bluetooth + BWS Suite
S3700-WB-QY-UKBWS
£3,249.61 -
BBP85 Sign and Label Printer QWERTY UK
BBP85-QY-UK
£3,428.69 -
BBP85 Sign & Label Printer - QWERTY UK + BWS Suite
BBP85-QY-UK-BWS
£3,615.28 -
BBP35 and BBP37 Media Wiper
BBP35-37-WIPER
£8.32 -
M211 Label Printer
M211-EU-UK-US
£115.00 -
M211 Label Printer Kit
M211-KIT-EU-UK-US
£165.00 -
M410 Portable Label Printer Kit UK
M410-KIT-UK
£355.00 -
M510 Portable Label Printer Kit UK
M510-KIT-UK
£413.00
Any user — virtually any label, sign, or tag
Auto setup — no calibrating, no threading, no expertise needed
Tap, print, go — onboard templates for streamlined productivity
Easy connect — PC software and a mobile app add flexibility
Label creation, just a tap away
Seamlessly design, view and print labels right from our industry-leading app.
The S3700 Printer, with Brady Workstation software or paired with Express Labels mobile app, provides a seamless on-demand experience for maximum on-site efficiency
Get started with Brady Workstation Get started with Express Labels
Enhanced capabilities for a flawless facility
Multicolour brilliance
Put colour at the core of your labelling for safety, Lean and work-in-process visuals that truly pop. Auto-adjusting multicolour panel ribbons last up to 60% longer and print colour labels on a single cartridge.

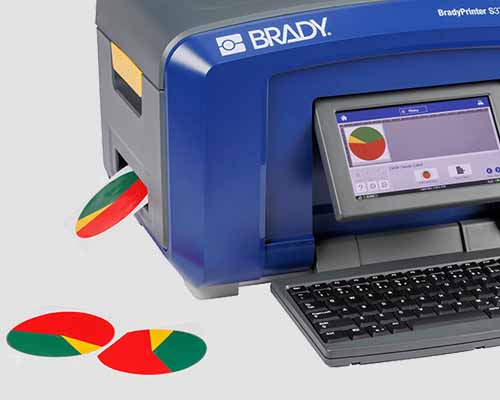

Transformative shape cutting
Enjoy straighter lines, smoother curves and tighter connection points thanks to the precision XY plotter cutter. Plus, stack pipe markers and pack multiple shapes per label to minimise waste.

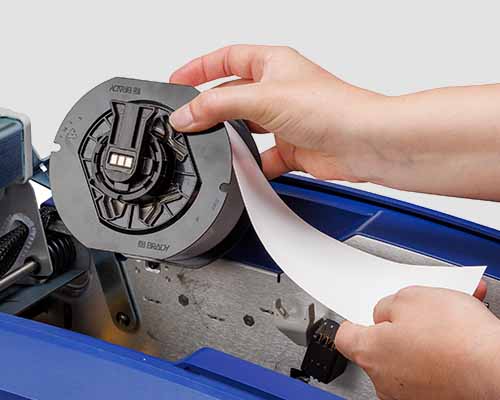

Faster print experience
Create and print faster than ever before with time-saving onboard templates, intuitive PC labelling software and a mobile app, plus 20-second material changeovers and 127 mm-per-second print speed.
Get the job done right for any application
Optimise your performance with the S3700 and Brady materials

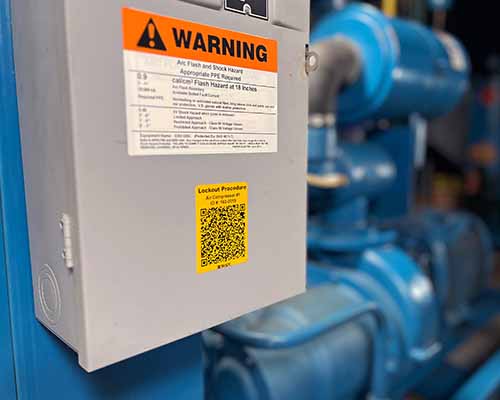

Safety & facility
- ISO-710 Warning, Prohibition, Mandatory, Fire and Evacuation, GHS, CLP, ADR? pipe marking and hazards instructions
- Multicolour optimised for more impact and less hassle
- Material durability up to 10 years outdoor in the most harsh environments

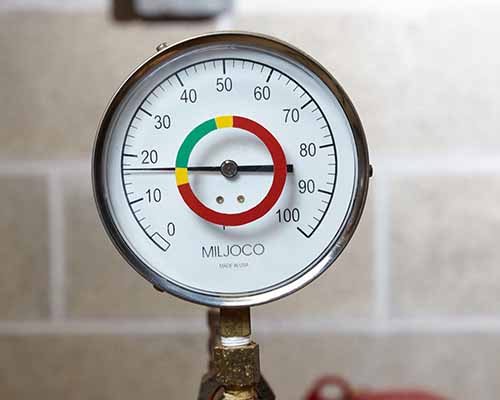

Lean manufacturing
- Gauges, equipment, calibration, 5S, racks, floor marking and parts bins
- Built-in XY plotter cutter to slice any shape and letter flawlessly
- Mobile app so you can take stock of your facility while the printer stays put

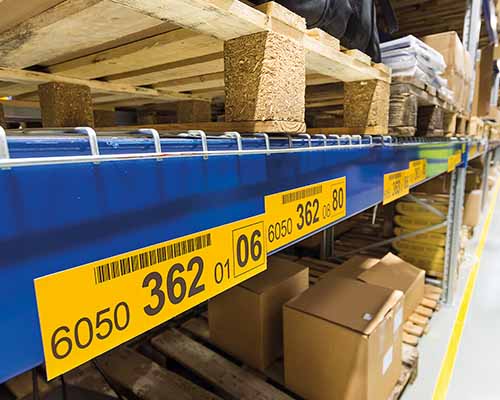

Operations
- Work in process, quality control, barcodes, area marking and serial numbers
- Create and print the most commonly used barcode types
- 600+ pre-programmed symbols
Purpose-built materials for the applications you need
A few S3700 label materials you need to know about
| Material |  Indoor/Outdoor |
 Frozen surface |
 General |
 Safety |
 Lean/5S |
 Harsh environment |
|---|---|---|---|---|---|---|
| All Weather |
Yes
|
No
|
Yes
|
Yes
|
No
|
No
|
| Repositionable |
No
|
No
|
Yes
|
No
|
Yes
|
No
|
| Magnetic |
Yes
|
No
|
No
|
No
|
Yes
|
No
|
| Washdown Resistant |
No
|
No
|
No
|
No
|
No
|
Yes
|
| Low-Halide Polyester |
Yes
|
No
|
No
|
No
|
No
|
Yes
|
| Tags |
No
|
No
|
Yes
|
Yes
|
No
|
Yes
|
| Cold Temperature |
No
|
Yes
|
No
|
No
|
No
|
No
|
| Photoluminescent |
No
|
No
|
Yes
|
No
|
No
|
No
|
