M510 Label Printer UK
Part Number: M510-UK
Click or press enter to play
£329.00
(GBP)
1 Piece(s) / Box
Including VAT: £394.80
Part Number: M510-UK
Description
The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do.
- Create large 38.10 mm labels with edge-to-edge printing and a wide range of text sizes
- Print up to 38.10 mm per second to get work done faster
- Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials
- Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC
- Backlit full-colour LCD graphics display for easier labelling in low-lit areas
- Durably designed to withstand 1.2 m drops
- Ships with the free Brady Workstation Basic Design suite that includes fundamental apps and features to create labels.
- The rechargeable NiMH battery prints up to 1700 labels on a single charge
Key Features
- Continuous vs Die Cut Labels: Continuous, Die-cut
- Application(s): Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Healthcare and Hospital labelling, Inventory and inspection labelling, Laboratory labelling, Lean and 5S labelling, Safety identification, Warehouse marking, Wire and cable labelling
- Colour Capability: Monocolour
- Max. Label Width (mm): 38.10 mm
- Print Technology: Thermal Transfer
- Recommended Usage per Day: 1000
- Resolution (dpi): 300 dpi
- Stand Alone Printing: Stand-alone & Peripheral
Specifications
Key Characteristics
| Article Number | 322725 |
|---|---|
| Order Reference | M510-UK |
| Total Qty per Pack | 1 Piece(s) / Box |
| Minimum Order Quanitity | 1 |
| Application(s) The type of application or end use environment the product is designed for. | Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Healthcare and Hospital labelling, Inventory and inspection labelling, Laboratory labelling, Lean and 5S labelling, Safety identification, Warehouse marking, Wire and cable labelling |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | M510 |
| Country of Origin Identifies where a product is manufactured or produced. It can determine tariffs and trade rules. | Malaysia |
Dimensions
| Size - Width (mm) | 146.05 mm |
|---|---|
| Size - Height (mm) | 95.25 mm |
| Size - Depth (mm) | 254.00 mm |
| Weight (kg) | 1.38 kg |
| Display Size | 71.12 mm |
| Minimum Label Height (mm) | 5.99 mm |
| Dimensions | 146.05 mm (W) x 95.25 mm (H) x 254.00 mm (D) |
Material Characteristics
| Materials Supported | BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallised Polyester, Nylon Cloth, Polyester, Polyethylene Tag, Polypropylene, Reflective Tape, Repositionable Vinyl, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper |
|---|---|
| Colour | Blue, Grey |
Product Features
| Battery mAh Rating | 1200 mAh |
|---|---|
| Auto Shut Off | 10 minutes, User Configurable |
| Battery Type | Rechargeable NiMH Battery |
| Battery Weight (metric) | 250.000 |
| Built-in Symbols | 480 |
| Language Support | Bulgarian, Chinese (Traditional & Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish |
| Calibration Printer requires manual calibration for optimal performance. | Automated through Smart Cell |
| Connectivity Options The way in which the printer or scanner can be connected to an external device, PC or Application. | USB |
| Custom Labels Available | No |
| Cutter Type | Single Hand Manual Actuate, Straight Cut, With label retention |
| Display Type | Colour LCD Screen, LCD backlit graphics display |
| How Is Battery Shipped | Shipped installed in equipment |
| Interface Type | Full QWERTY Keyboard, PC |
| Internal Memory Capacity | 512 MB RAM, 256 MB Flash |
| Barcode Symbologies | Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E, Data Matrix, QR code |
| Keyboard Type | QWERTY |
| Operating Humidity Range | 20%-90% (non-condensing) |
| Operating Temperature | 4°C - 43°C |
| Stand Alone Printing Stand-alone Mode of Operation means that the printer does not need to be connected to a computer or mobile app for operation. Peripheral means that a computer or mobile app is required to run the printer. Some printer models can operate in both modes. | Stand-alone & Peripheral |
| Power Source | AC Adaptor, Rechargeable Battery |
| Power Supply Voltage | 110 - 240 V |
| Printing Wizards | 66 Block, Breaker Box, DesiStrip, Faceplate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap |
| Recharge Time The amount of time the rechargeable battery needs to be fully recharged. | 4 hours |
| Shipped With Battery | Yes |
| Storage humidity | 10%-90% (non-condensing) |
| Storage Temperature | -18°C - 43°C |
| Charging Times | Charging over battery charger (0 - 100%) 4h |
Printing Specifications
| Print Technology | Thermal Transfer |
|---|---|
| Print Speed (mm/sec) | 38.10 mm/s |
| Printing Functions | Auto Format, Banner, Date/Time Stamp, Fixed Length, Justification, List Function, Mirror, Multi-copy, Print Preview, Reverse, Rotate, Serialisation, Vertical |
| Colour Capability | Monocolour |
| Resolution (dpi) | 300 dpi |
| Display Resolution | 320 x 240 pixels |
| Max. Label Width (mm) For custom materials, consult technical documentation for printing specifications | 38.10 mm |
| Max. Liner Width (mm) | 45.72 mm |
| Recommended Usage per Day Estimated throughput based on a typical work week (8 hrs/day, 5 days/week). Actual results may vary due to label size, material, print speed, and content. | 1000 |
| Max. Print Width (mm) | 36.58 mm |
| Max. Print Length (mm) | 99.06 cm |
| Text Sizes (pt) | 4 - 170 pt |
| Font Styles | Brady Alpine, Brady Fixed Width |
| Symbol Categories | Arrows, Datacom, Electrical, Exit, Fire Safety, First Aid, GHS/CLP, Greek, Home Electrical, HSID, International, ISO Signs, Laboratory, Mandatory, Miscellaneous, Packaging, Personal Protective Equipment, Prohibition, Public Information, Safety, Warning, WHIMIS |
| Number of Stock Parts | 250+ standard parts |
| On Screen Indicators | Battery Life, Supply Remaining |
| Print Rotation | Yes |
| Min. Label Width (mm) | 5.97 mm |
| Drop Test | Resistant to 1.2 metre drops |
| Programming Language | Brady Custom ZPL Emulation Software Solution, Brady Script Emulator for ZPL (Accessory required) |
| Serialisation | Simple & Simultaneous & Single Advanced & Multiple Advanced |
| Smart Cell | Yes |
Compatibility
| Continuous vs Die Cut Labels | Continuous, Die-cut |
|---|---|
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
| B- Numbers supported | B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-425A, B-427, B-428, B-430, B-432, B-461, B-481, B-482, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641 |
| Compatible Media The corresponding media series: Parts with this prefix are compatible with the printer. | M4-, M4C-, M5-, M5C- |
| Min. Label Length (mm) Test for your application. Small label performance varies based on print speed, quantity per print run, heat setting, and size and layout of the printed content. | 6.10 mm |
What's Included
| Includes | This M510 Printer ships in a cardboard box with a rechargeable NiMH Battery Pack, an AC Adapter, B-595 Vinyl label Cartridge, a Quick start Guide, a USB Cable, a Brady Workstation Basic Design Software Suite and a USB Flash Drive with Driver and User Manual. |
|---|---|
| Warranty | 2 years |
Compliance
| UNSPSC Standardises product/service classification globally. | 45101520 |
|---|---|
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 04 February 2026 |
| Approval/Compliance | CE, FCC, UKCA |
| Safe Use Instructions | SUI_Systems.pdf |
| Printer can be shipped to | Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil - Non-Government Companies, British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African Republic, Chad, Chile, China, Colombia, Comoros, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Greenland, Grenada, Guadeloupe, Guam, Guatemala, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kosovo, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Libya, Liechtenstein, Lithuania, Luxembourg, Macau, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania, Mauritius, Mayotte, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Montserrat, Morocco, Mozambique, Myanmar [Burma], Namibia, Nauru, Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pacific Islands Trust Territory, Pakistan, Palau, Palestinian Territories, Panama, Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico, Qatar, Republic of Congo, Republic of North Macedonia, Réunion, Romania, Rwanda, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, San Marino, São Tomé and Príncipe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Korea, South Sudan, Spain, Sri Lanka, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tanzania, Thailand, Timor-Leste, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turks and Caicos Islands, Tuvalu, U.S. Virgin Islands, Uganda, Ukraine (Excluding Crimea Region), United Arab Emirates, United Kingdom, United States, Uruguay, Vanuatu, Vatican City, Venezuela, Vietnam, Yemen, Zambia, Zimbabwe |
Drivers, Firmware & Software
Drivers & Firmware
Guides and Videos
Product Overviews & Specs
Manuals, Guides & How-To
Customers also bought
-
M511 Label Printer
M511-EU-UK-US
£339.00 -
M410 Portable Label Printer Kit UK
M410-KIT-UK
£369.00 -
M510 Portable Label Printer Kit UK
M510-KIT-UK
£433.00 -
M410 Label Printer UK + Brady Workstation Suite
M410-UK-BWS
£459.00 -
M510 Label Printer UK + Brady Workstation Suite
M510-UK-BWS
£509.00 -
M611 Label Printer - UK
M611-UK-BT-W
£572.06 -
M510 Portable Label Printer Kit UK + Brady Workstation Suite
M510-KIT-UK-BWS
£613.00 -
M511 Label Printer Kit
M511-EU-UK-KIT
£729.00 -
i3300 Industrial Label Printer- UK
I3300-300-C-UK
£1,066.50 -
i6100 Industrial Desktop Label Printer UK
I6100-300-UK
£1,132.00

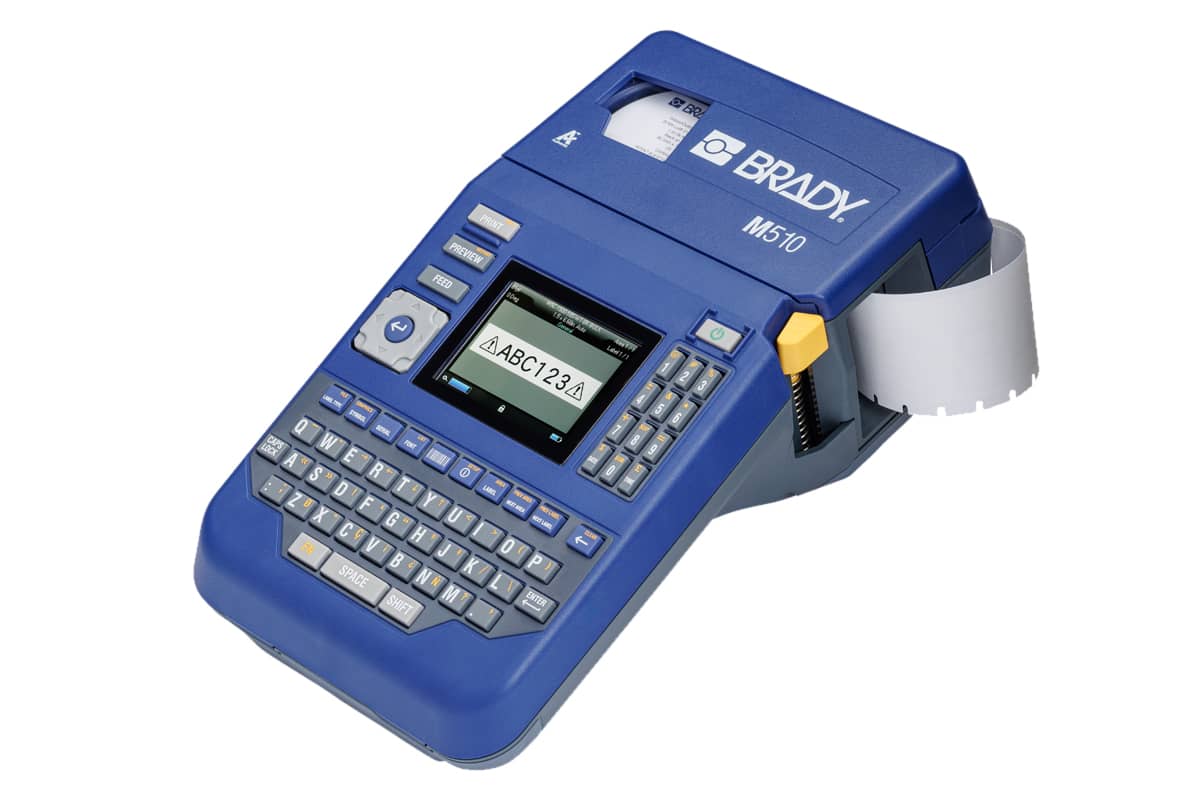

The perfect companion for your project workspace

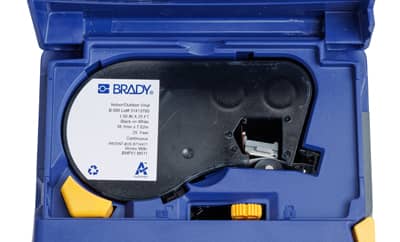

Over 250 labels up to 38 mm wide — more options, including pre-sized labels, than other 38 mm label printers
Edge to edge printing — more room to fit the data you need with no label waste

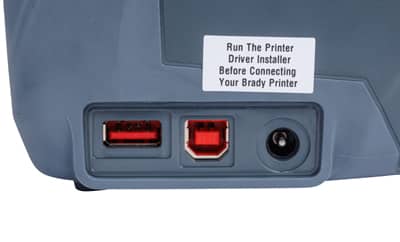

Flexibility for any workspace — Design and print labels on your computer with Brady Workstation Software or on the fly at your workspace
Every day durability — built to withstand 1.2 m drops

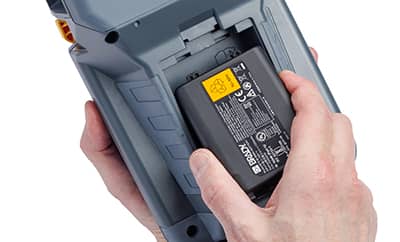

No down time — print 4,400 labels on a full charge*
*With high-capacity Li-ION battery, sold separately. Included with all M510 Printer Kits

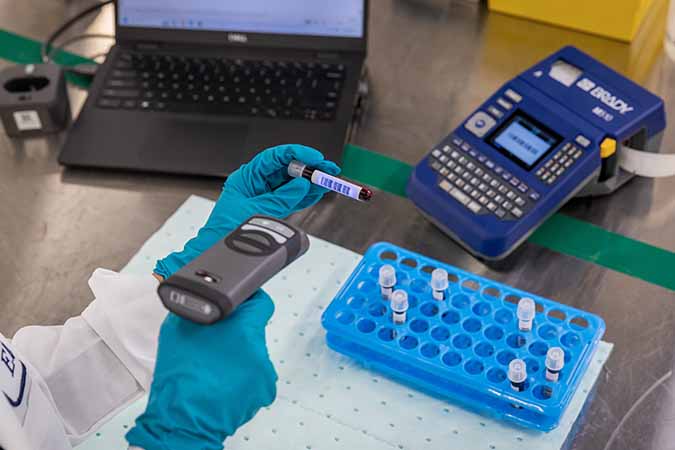

Labs
- Do more with a surplus of sizes, colours and materials
- Easily locate equipment, assets and batches
- Confidently label in the coldest, harshest environments

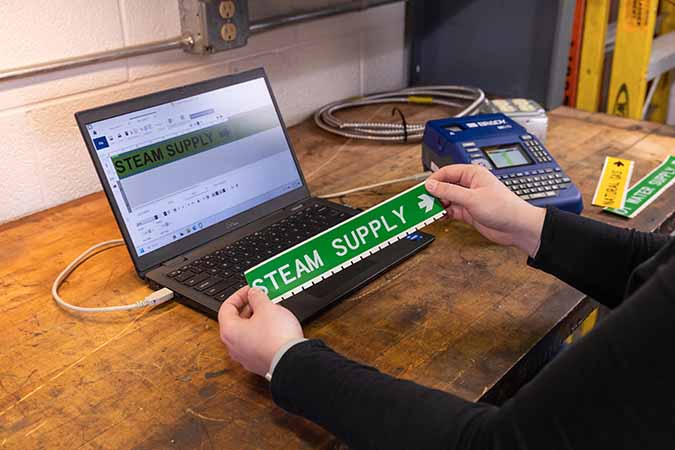

Safety & Facility and Lean 5S
- Pipe markers, tool kits and bins
- See bigger text from safer distances
- Communicate info better: safety, caution & compliance

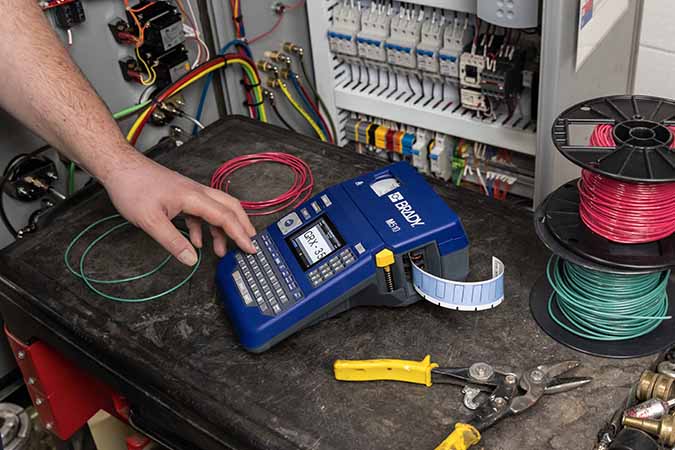

Wire & Cable and Electrical
- Use 1 tool for multiple on-site applications
- Create pre-set label options
- Wrap, sleeve, tag and flag through challenging work
Choose how you want to create. Printer keypad? Phone keyboard? It’s up to you.
These printers have a lot in common: they print the same M4 M5 label cartridges, up to 38 mm wide. They also share crisp 300 dpi print resolution, work with great accessories like a utility hook and magnet, and can print using Brady Workstation Software.
Here’s what’s unique about them:
| Printer name | ||
|---|---|---|
 |
 |
|
| Print Speed (mm/sec) | 38.10 | 33.8 |
| Ways to print |
|
|
| Battery Type & Life |
|
|
| Label Cutter | Manual | Auto |
| Display | Full colour LCD screen | n/a - Connected to PC or mobile device |
| Durability - drop resistance | 1.2 m | 1.8 m |
Brady Authentic materials - a premium labelling experience
Brady Authentic materials work seamlessly with the M510 Printer to produce enhanced performance and reliability. The M510 Printer is not compatible with non-Authentic materials: non-Brady manufactured or materials from earlier generation Brady printers. Check for the insignia!
Discover more about Authentic materials! Download the old-to-new material conversion sheet
Hundreds of purpose-built materials for the applications you need
A few M510 label materials you should know about
| Material |  Wire & Cable |
 Electrical & DataCom |
 Component & Equipment |
 Safety & Facility |
 Laboratory |
|---|---|---|---|---|---|
| Multi-Purpose Nylon |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| All-Weather Vinyl |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Cryo & Vial Polyester * |
No
|
No
|
No
|
No
|
Yes
|
| Tear-Resistant Tags |
Yes
|
Yes
|
No
|
No
|
No
|
| Heat-Shrink Sleeves * |
Yes
|
No
|
No
|
No
|
No
|
| Flags * |
Yes
|
Yes
|
No
|
No
|
No
|
| Self-Laminating Vinyl Wraps * |
Yes
|
Yes
|
No
|
No
|
No
|
| All-Weather Reflective |
No
|
No
|
No
|
Yes
|
No
|
| Metalised Matte Polyester |
No
|
No
|
Yes
|
No
|
No
|
| BradyGrip Hook Labels for VELCRO Brand Hook * |
No
|
Yes
|
Yes
|
No
|
No
|
