V4500 Barcode Reader
Part Number: BR-V4500
Description
- High-speed, omnidirectional barcode scanning made simple
- Ideal for inventory management, kit verification, scan and print, and packout applications
- Proprietary Cortex Decoder technology allows reader to easily read tiny barcodes as well as shiny and hard-to-read surfaces
- Automated keyboard device and dynamic user interface lets you go from setup to first scan in seconds
- Data parsing feature lets you sort and arrange data exactly how you want – start with a simple scan and easily connect to the cloud and your ERP system
- Withstands 2.4 m drops (MIL-STD-810G)
- Inductive-charging battery lasts a full shift with over 75,000 scans
Key Features
- Ingress Protection Rating: IP65
- Application(s): Asset tracking, Barcode labelling, Circuit board labelling, General identification
- 1D / 2D Barcode Capability: 2D
- Connectivity Options: Bluetooth® 5 Low Energy (class II)
- Wireless / Wired: Wireless
Specifications
Key Characteristics
| Article Number | 177233 |
|---|---|
| Order Reference | BR-V4500 |
| Total Qty per Pack | 1 Piece(s) / Box |
| Minimum Order Quanitity | 1 |
| Application(s) The type of application or end use environment the product is designed for. | Asset tracking, Barcode labelling, Circuit board labelling, General identification |
| Quantity | 1 |
| Brand | Brady® |
| Trade Name | V4500 |
| Country of Origin Identifies where a product is manufactured or produced. It can determine tariffs and trade rules. | Malaysia |
Dimensions
| Size - Width (mm) | 86.00 mm |
|---|---|
| Size - Height (mm) | 198.00 mm |
| Size - Depth (mm) | 152.00 mm |
| Weight (kg) | 0.53 kg |
| Dimensions | 86.00 mm (W) x 198.00 mm (H) x 152.00 mm (D) |
Material Characteristics
| Colour | Blue, Grey, Yellow |
|---|
Product Features
| Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
|---|---|
| Battery Type | Rechargeable Lithium-ion Battery |
| Connectivity Options The way in which the printer or scanner can be connected to an external device, PC or Application. | Bluetooth® 5 Low Energy (class II) |
| Focal Point The specific measured distance between the scanner and the label at which the barcode can be optimally read. | Approximately 100 mm |
| Hardware Options | Charging station |
| Operating Humidity Range | 5% to 95% (non-condensing) |
| Operating Temperature | -20°C - 50°C |
| Pitch The rotation of a barcode symbol about an axis perpendicular to the bars, expressed in degrees. | ± 65° (from front to back) |
| Power Source | Rechargeable Battery |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz |
| Decode Capabilities - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
| Rotational Tolerance | +/- 180° |
| Sensor The type of sensor used by the Barcode Scanner to read barcodes. | CMOS 1.2 megapixel; (1280 x 960) grey scale |
| Shipped With Battery | No |
| Skew The rotation of a barcode symbol about an axis parallel to the bars, expressed in degrees. | ± 60° from plane parallel to symbol (side-to-side) |
| Storage Temperature | -30°C - 65°C |
| Target Beam The type of light source used by the Barcode Scanner to scan barcodes. | Single blue targeting bar |
| Style | Integrated handle |
| Optical Resolution Optical resolution describes the ability of an imaging system to resolve detail in the object that is being imaged. This is expressed as a two-dimensional result in pixels. | High Density Field: 960 x 640, Wide Field: 960 x 640 |
| Image Output Options | JPEG, PGM |
| Decode Capability - 1D Stacked | Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
| Decode Capability - Postal | Australian Post, Canada Post, Itelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
| Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode® (prorietary--add'l license req'd), Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1 |
| Field Selection | High Density or Wide Field |
| Advanced Data Editing | JavaScript |
| Symbol Contrast | 15% minimum reflectance difference |
| Charging Station w/BT Radio Communication Interfaces for Barcode Scanners | RS232, USB 2.0 (generic HID, HID keyboard, virtual com port) |
| Reader/Scanner Unit Communication | Bluetooth 5 Low Energy (class II) |
| Number of Scans | Up to 75,000 scans per charge |
| Data Parsing | Driver's licences and ID Cards (optional licence required), GS1, HIBC |
| Data Structure Validation | HIBC UDI, ISO 15418, ISO 15434 |
| Charging Times | Charging over cradle (0 - 100 %) 4 h |
| Wireless / Wired | Wireless |
| 1D / 2D Barcode Capability | 2D |
| Portability | Portable |
Printing Specifications
| Power Requirements | 10 Watts |
|---|---|
| Drop Test | Resistant to 114 kg crushes, Resistant to 2.4 metre drops, Resistant to military-grade shocks (MIL-STD-810G) |
What's Included
| Includes | V4500 Barcode Scanner |
|---|---|
| Warranty | 3 years |
Compliance
| UNSPSC Standardises product/service classification globally. | 43211701 |
|---|---|
| RoHS Compliance Status | Compliant with 2011/65/EU with exemptions |
| REACH SVHC Status | Part contains an SVHC |
| REACH Candidate List Date | 04 February 2026 |
| Approval/Compliance | CE, UKCA |
| Safe Use Instructions | SUI_Systems.pdf |
| Printer can be shipped to | Australia, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kazakhstan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Taiwan, Turkey, United Kingdom, United States |
| Ingress Protection Rating Rating of protection provided against intrusion, dust, accidental contact, and water by mechanical casings and electrical enclosures. | IP65 |
Drivers, Firmware & Software
Drivers & Firmware
Guides and Videos
Product Overviews & Specs
- V4500 Barcode Reader: Automate and simplify workflows with digital data capture - infosheet (EUR-M-383-EN) [PDF]
- Code Reader Comparison (EUR-M-336-EN) [PDF]
-
RFID or barcode for asset tracking: How to make the right choice for your business? - Video
Customers also bought
-
V4500 Barcode Reader Kit
BR-V4500-BTR
£557.07 -
V1200 Battery for V4500 Barcode Reader
BRA-V1200
£80.99 -
V1100 Kit for V4500 Barcode Reader UK
BRA-V1100-KIT-UK
£338.38 -
V1300 Kit for V4500 Barcode Reader UK
BRA-V1300-KIT-UK
£321.28 -
V4500 Barcode Reader Kit UK
BR-V4500-KIT-UK
£729.00 -
USB Cable for V4500 Barcode Reader
BRA-USB-RJ50-1
£29.70 -
RS232 Cable for V4500 Barcode Reader
BRA-RS-RJ50-1
£29.70 -
AC Adapter for V4500 Barcode Reader
BRA-AC-9V
£26.10 -
V1100 Spare Battery Charger for V4500 Barcode Reader
BRA-V1100
£170.99 -
V1300 Cradle for V4500 Barcode Reader
BRA-V1300
£252.89
High-speed, omnidirectional barcode reading made simple by Brady
Scan hard-to-read surfaces with ease
Tiny, shiny or curvy – the V4500's high-performance, multi-directional scanning reads any barcode.

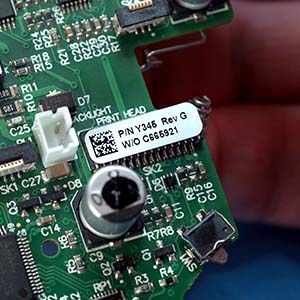

Tiny
Capture and read data from circuit boards, electronic components and laboratory vials with precision.

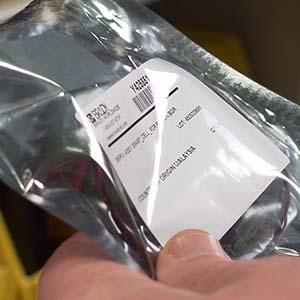

Shiny
Perfect for automotive parts, plastic injection molding dies, heavy machinery, integrated circuit chips, metal tags, rating plates and more.
Curvy
Accurately scan curved surfaces including wires, hydraulic lines, server cabling and laboratory assets.
Automate and simplify workflows with digital data capture
From the shop floor to the cloud — and everywhere in between — Brady helps you discover more ways to get better connected to your operations. Troubleshoot with more accuracy. Forecast, organise and scale across facilities. Make decisions in real-time. From automation to analytics, get everything you need to get started — then scale. Get better with Brady Intelligent Solutions.
Inventory Management
- Enable "living" interactive database
- Real time inventory levels
- Minimise misplacement of goods
- Accurately identify products
Kit Verification
- Custom reader to fit workflow
- Step by step instructions
- Accurately fulfill orders
- Prevent costly rework
Scan & Print
- On-board data parsing and editing
- Combine multiple labels into one
- Accurately recreate barcodes
- Seamless Brady interface
Packout
- No guessing, get confirmation
- Prevent costly errors
- Faster workflows
- Eliminate downstream costs
The scan is just the start
Brady’s digital data capture, exchange and print solutions help you automate your workflows and scan past the competition.
-
Desktop & Mobile Print Technology
We make it easy to make premium labels in no time via touchscreen and keyboard or PC and mobile connectable options.
-
High-performance Labeling Technology
We are a material science company at our core, and specialize in purpose-built labels that deliver premium performance for nearly every industrial application, designed to withstand even the harshest environments.
-
Barcode, Optical & RFID Readers
Digitize data capture with ease and streamline your workflows with these critical components of your intelligent ecosystem
-
Advanced Integration & Connectivity
Automate your business and connect your operations seamlessly with our complete data exchange solutions.
-
Data Acquisition & Exchange
Brady’s digital data capture, exchange and print solutions help you automate your workflows and scan past the competition.
Learn more about how Brady can help you revolutionize your operations
